REAR SUSPENSION > Front Lateral Link

ASSEMBLY

1. Before assembly, inspect the following items and replace any faulty part with a new one.

Visually check the lateral link assembly - front for damage and deformation.

Visually check the bushing for abnormal cracks, fatigue or damage.

Visually check the dust cover on the ball joint for damage.

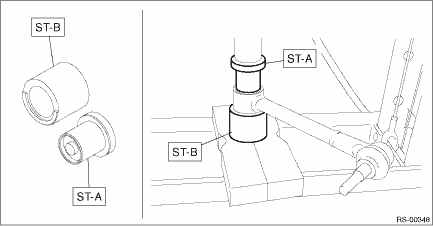

2. Using the ST, press-fit the bushing B - lateral link.

CAUTION:

Make sure to press the bushing straight in.

Preparation tool:

ST-A & ST-B: INSTALLER & REMOVER (20099AE000)

Front lateral link
...
