Subaru Crosstrek Service Manual: Rear wiring harness Location
WIRING SYSTEM > Rear Wiring Harness

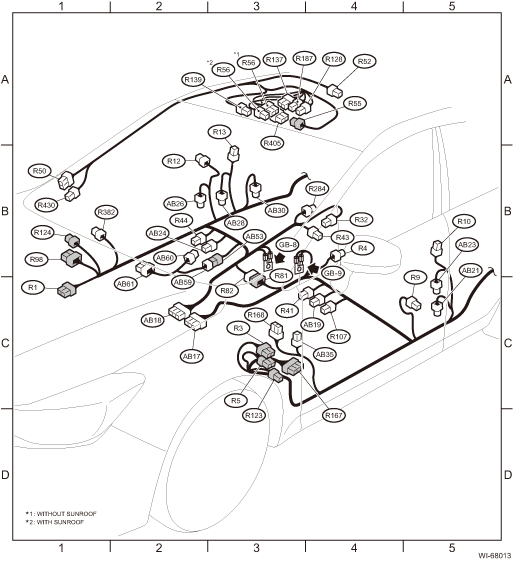

LOCATION
Connector | Connecting to | ||||
No. | Pole | Color | Area | No. | Description |
R1 | 20 |
| C-1 | B97 | Bulkhead wiring harness |
R3 | 20 |
| C-3 | B99 | |
R4 | 1 | Black | B-4 | Parking brake switch | |
R5 | 20 |
| C-3 | B92 | Bulkhead wiring harness |
R9 | 3 |
| C-5 | Front door switch LH | |
R10 | 8 |
| B-5 | D22 | Rear door cord LH |
R12 | 3 |
| B-2 | Front door switch RH | |
R13 | 8 |
| B-3 | D28 | Rear door cord RH |
R32 | 2 |
| B-4 | Rear accessory power supply socket | |
R41 | 4 |
| C-4 | Seat heater LH | |
R43 | 8 |
| B-4 | Seat heater switch | |
R44 | 4 |
| B-2 | Seat heater RH | |
R50 | 20 |
| B-1 | B90 | Bulkhead wiring harness |
R52 | 3 |
| A-4 | Room light | |
R55 | 8 |
| A-3 | Sunroof motor assembly | |
R56 | 10 |
| A-3 | Spot map light (with sunroof) | |
6 |
| A-3 | Spot map light (without sunroof) | ||
R81 | 19 | Black | C-3 | R82 | Rear wiring harness RH |
R82 | 19 | Black | B-3 | R81 | Rear wiring harness LH |
R98 | 24 |
| B-1 | i53 | Instrument panel wiring harness |
R107 | 2 |
| C-4 | Seat belt switch LH | |
R123 | 2 | Yellow | C-3 | AB62 | Front door cord LH |
R124 | 2 | Yellow | B-1 | AB63 | Front door cord RH |
R128 | 5 |
| A-4 | Sunroof switch | |
R137 | 16 |
| A-3 | Stereo camera | |
R139 | 3 |
| A-3 | Rear view mirror | |
R167 | 24 |
| C-3 | i102 | Instrument panel wiring harness |
R168 | 20 |
| C-3 | F/B | |
R187 | 5 | Black | A-3 | Sunroof switch (tilt) | |
R284 | 8 |
| B-4 | AUX input terminal | |
R382 | 10 |
| B-1 | i195 | Instrument panel wiring harness |
R405 | 12 |
| A-3 | R407 | Stereo camera cover |
R430 | 6 |
| B-1 | B151 | Bulkhead wiring harness |
| |||||
Connector | Connecting to | ||||
No. | Pole | Color | Area | No. | Description |
AB17 | 24 | Yellow | C-2 | Airbag CM | |
AB18 | 24 | Yellow | C-2 | ||
AB19 | 4 | Yellow | C-4 | Side airbag module LH | |
AB21 | 2 | Black | C-5 | Pretensioner LH | |
AB23 | 4 | Yellow | C-5 | Side airbag sensor LH | |
AB24 | 4 | Yellow | B-2 | Side airbag module RH | |
AB26 | 2 | Black | B-2 | Pretensioner RH | |
AB28 | 4 | Yellow | B-3 | Side airbag sensor RH | |
AB30 | 2 | Yellow | B-3 | Lap seat belt pretensioner RH | |
AB35 | 2 | Black | C-3 | F/B | |
AB53 | 3 | Dark gray | B-3 | AB59 | Occupant detection harness |
AB59 | 3 |
| B-2 | AB53 | Rear wiring harness |
AB60 | 2 | Yellow | B-2 | Buckle switch | |
AB61 | 10 | Black | B-2 | Occupant detection control module | |
| |||||
