Subaru Crosstrek Service Manual: Dtc p0101 mass or volume air flow sensor "a" circuit range/performance

Subaru Crosstrek Service Manual / Engine (diagnostics)(h4do) / Diagnostic procedure with diagnostic trouble code (dtc) / Dtc p0101 mass or volume air flow sensor "a" circuit range/performance

ENGINE (DIAGNOSTICS)(H4DO) > Diagnostic Procedure with Diagnostic Trouble Code (DTC)

DTC P0101 MASS OR VOLUME AIR FLOW SENSOR "A" CIRCUIT RANGE/PERFORMANCE

DTC DETECTING CONDITION:

Detected when two consecutive driving cycles with fault occur.

TROUBLE SYMPTOM:

Improper idling

Engine stall

Poor driving performance

CAUTION:

After servicing or replacing faulty parts, perform Clear Memory Mode Clear Memory Mode > OPERATION">, and Inspection Mode Inspection Mode > PROCEDURE">.

STEPCHECKYESNO

1.CHECK FOR ANY OTHER DTC ON DISPLAY.

Is any other DTC displayed?

Check the appropriate DTC using the “List of Diagnostic Trouble Code (DTC)”. List of Diagnostic Trouble Code (DTC)">

Replace the mass air flow and intake air temperature sensor. Mass Air Flow and Intake Air Temperature Sensor">

1. OUTLINE OF DIAGNOSIS

Detect the malfunction of air flow sensor output properties.

Judge as a low side NG when the air flow voltage indicates a small value regardless of running in a state where the air flow voltage increases. Judge as a high side NG when the air flow voltage indicates a large value regardless of running in a state where the air flow voltage decreases. Judge air flow sensor property NG when the Low side or High side becomes NG.

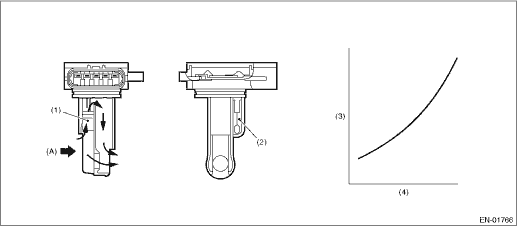

2. COMPONENT DESCRIPTION

(A)

Air

(1)

Air flow sensor

(3)

Voltage (V)

(4)

Intake air amount (kg (lb)/s)

(2)

Intake air temperature sensor

3. EXECUTION CONDITION

Secondary parameters

Execution condition

Low

Engine speed

≥ 1800 rpm

Throttle position

≥ 12 ° (CVT model)

≥ 12 ° (MT model)

Intake manifold pressure (with atmospheric pressure compensation)

≥ 74.7 kPa (560 mmHg, 22 inHg) (CVT model)

≥ 74.7 kPa (560 mmHg, 22 inHg) (MT model)

High

Engine speed

500 rpm — 800 rpm (CVT model)

500 rpm — 950 rpm (MT model)

Throttle position

< 5 &#x00B0;

Intake manifold pressure (with atmospheric pressure compensation)

< 56 kPa (420 mmHg, 16.5 inHg) (CVT model)

< 46.7 kPa (350 mmHg, 13.8 inHg) (MT model)

4. GENERAL DRIVING CYCLE

Perform the diagnosis continuously after idling.

5. DIAGNOSTIC METHOD

Judge as NG when Low side or High side becomes NG.

If the duration of time while the following conditions are met is longer than the time indicated, judge as NG.

Judgment value

Malfunction Criteria

Threshold Value

Low

Output voltage

(Air amount) 8.4 g/s (0.3 oz/s)

< 1.698 V (CVT model)

< 1.66 V (MT model)

High

Output voltage

(Air amount) 8.4 g/s (0.3 oz/s)

≥ 1.698 V (CVT model)

≥ 1.66 V (MT model)

Time Needed for Diagnosis:

Low: 5000 ms

High: 5000 ms

Malfunction indicator light illumination: Illuminates when malfunction occurs in 2 continuous driving cycles.
