Subaru Crosstrek Service Manual: Component
IGNITION(H4DO) > General Description
COMPONENT

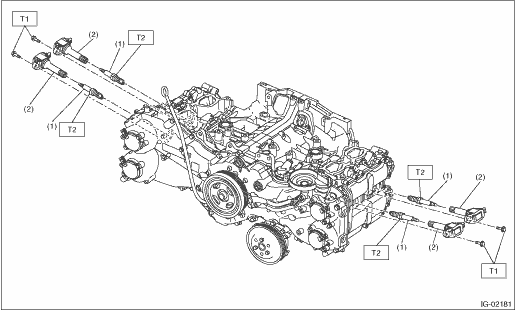

(1) | Spark plug | (2) | Ignition coil | Tightening torque: N·m (kgf-m, ft-lb) | |
T1: | 8.5 (0.9, 6.3) | ||||
T2: | 17.5 (1.8, 12.9) | ||||
Specification
IGNITION(H4DO) > General DescriptionSPECIFICATIONItemSpecificationsIgnition coilManufacturer and typeHitachi: EIC-2230Ignition systemIndependent ignition coilSpark plugManufacturer and typeNGK: SIL ...
Ignition coil
...
